Aluminium plug for crankshaft 6mm
Aluminium Verschluss Stopfen für Kurbelwelle Standard 6mm 750 / 101 + 105 / 115 + 113 / 116 Typen
Bushing for crankshaft 1300 - 2000 105 24mm
Bushing rear for crankshaft (24mm) Alfa Romeo 105 / 115 - Models Montreal
Crankshaft 1600 Sport 105 models + GTA + 101
Our 1600 GTA crankshafts are machined to our exclusive design by Arrow precision, a leading crankshaft manufacturer with over 30 years experience in the Motorsport arena, including Formula 1, Le Mans, WRC and WTCC. They are manufactured to our specification that has been developed over a number of years and is the result of our extensive experience of tuning the 1600 GTA engine. The cranks are manufactured from a solid billet of very high specification EN40B (722M24) material. The material is specially selected to ensure that it is particularly clean ensuring that oxide and sulphide content is minimised. This gives major improvement in the strength and ductility of the material and greatly improves fracture resistance. Our material should not be confused with other (cheaper) steels that are used in crankshaft manufacture! The design incorporates eight counterweights to increase reliability at high rpm by reducing the loads on the crank bearings generated by the connecting rod and piston inertia. The counterweights are knife edged to reduce drag and are pocketed to remove inefficient mass, helping to reduce overall inertia and improve throttle response. The oil supply galleries are fully linked through the crank and feature new outlet positions in the big ends to optimise the supply of oil to the connecting rod bearings. The crank is gas nitrided to increase the hardness of the bearing surfaces and dynamically balanced to race engine specification. We firmly believe that you will not find a better crank on the market!!!
Crankshaft ARROW Sport AR 2000
Our 2000cc. Alfa Romeo crankshafts are machined to our exclusive design by Arrow precision, a leading crankshaft manufacturer with over 30 years experience in the Motorsport arena, including Formula 1, Le Mans, WRC and WTCC. They are manufactured to our specification that has been developed over a number of years and is the result of our extensive experience of tuning the 1600 GTA engine. The cranks are manufactured from a solid billet of very high specification EN40B (722M24) material. The material is specially selected to ensure that it is particularly clean ensuring that oxide and sulphide content is minimised. This gives major improvement in the strength and ductility of the material and greatly improves fracture resistance. Our material should not be confused with other (cheaper) steels that are used in crankshaft manufacture! The design incorporates eight counterweights to increase reliability at high rpm by reducing the loads on the crank bearings generated by the connecting rod and piston inertia. The counterweights are knife edged to reduce drag and are pocketed to remove inefficient mass, helping to reduce overall inertia and improve throttle response. The oil supply galleries are fully linked through the crank and feature new outlet positions in the big ends to optimise the supply of oil to the connecting rod bearings. The crank is gas nitrided to increase the hardness of the bearing surfaces and dynamically balanced to race engine specification. We firmly believe that you will not find a better crank on the market!!!
Engine block strengthening plate 101 / 105 / 116 + 75
Motorsport crankshaft girdle plate - laser-cut steel construction Alfa Romeo 101 / 105 / 116 / 75 types This high-strength, laser-cut steel plate reinforces the entire crankshaft assembly and provides significantly greater stability in the main bearing area. Installation takes place between the engine block and the oil pan at the main bearing caps. The additional reinforcement reduces vibrations in the crankshaft assembly and significantly decreases the load on the crankshaft main bearings - a decisive advantage for high-performance or high-revving engines. Performance advantages: Significantly stiffer crankshaft assembly Reduced engine vibrations Lower bearing wear Higher load capacity of the engine block Additionally, the plate acts as an oil scraper and prevents oil from sloshing away from the oil pump during fast cornering. This ensures stable oil supply even under high lateral forces. Proven in motorsport Ideal for high-performance and tuned engines
Flywheel bolt 1300 - 1750cc 8 holes flywheel
Flywheel bolt for 8 hole flywheel Alfa Romeo 1300 - 1750cc 750 / 101 - Models 105 - Models
Flywheel Sport steel 6 holes 2000cc. modific. 5,95 kg
Sport flywheel Steel Lightwheel 5,95 KG Starter ring 105 teeth To convert cars with mechanical clutch to a 2000cc. engine as Giulietta / Giulia 750 / 101 and others.

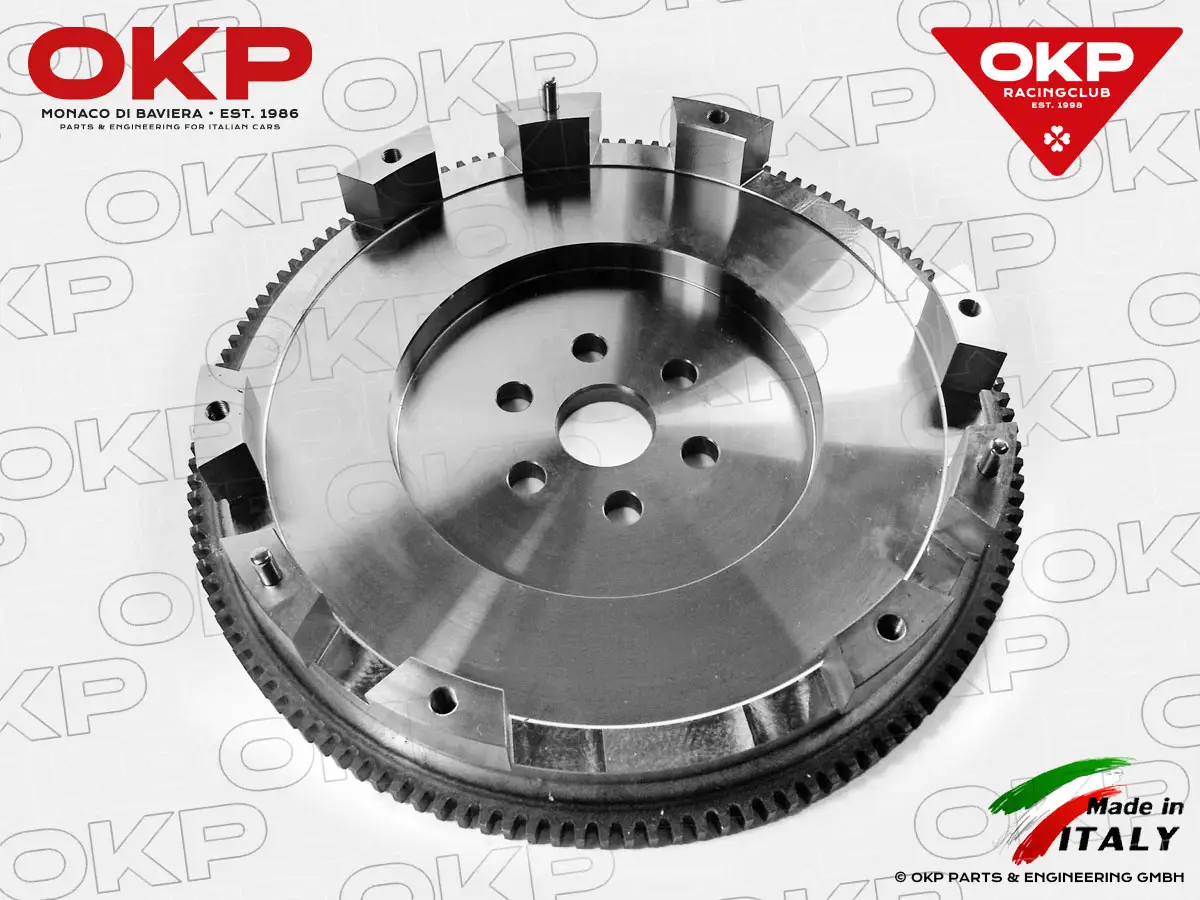

Flywheel Sport steel 6 holes hydr. clutch 6,5 kg
Sport flywheel steel lightweight 6,5 kg Version for hydraulic clutch Starter ring 130 teeth 6 - holes mounting 1300 - 2000cc 105 / 115 Bertone Spider Spider (Bj. 1990 - 93) Giulia Berlina
Flywheel Sport steel 8 holes hydr. clutch 7,1 kg
Sport flywheel Steel Lightweight 7,1 KG Version for hydraulic clutch Starter ring 110 teeth Diameter 215mm Material 42CrMo4 8 - holes mounting Alfa Romeo 1300 - 1750cc 105 / 115 Please note: Our flywheels are made in one piece including starter ring Made in Italy
Flywheel Sport Steel 8 holes mechanical clutch 6,20 kg
Sport flywheel Steel Lightweight 6,20 KG Version for mechanical clutch Starter ring 105 teeth Diameter 200mm Material 42NiCrMo4 8 - holes mounting Alfa Romeo 1300 - 1600cc 105 / 115 Please note: Our flywheels are made in one piece including starter ring Made in Italy
Front crankshaft pulley tab washer 101 / 105 / 115 + Alfetta
Front crankshaft pulley tab washer Alfa Romeo 101 - Models 105 / 115 - Models Alfetta Giulietta Alfa 75
Metal safety tab washer for flywheel bolts (6 holes)
Washer ring for 6 Bolt Flywheel Alfa Romeo 2000cc 105 / 115 - Models 1600cc. Spider 1990 - 1993
Pulley for crankshaft aluminium 360° scaling (105mm)
1300 - 1600cc engines 101 / 105 / GTA models Diameter 105mm Aluminium pulley with 360° scaling Special coated 50% weight reduction
Pulley for crankshaft aluminium 360° scaling (125mm)
Lightweight Crankshaft Pulley 125mm (Aluminium) 1750 - 2000cc engines 105 / 115 models Diameter 125mm Aluminium pulley with 360° scaling Special coated Weight 390 grams Made in Italy
Rebuilt crankshaft with bearings 1300, 105
Caution EUR 250,- net
Rebuilt crankshaft with bearings 1600 105
Die Kaution für dieses Teil beträgt EUR 250,- (exkl. MwSt.) und wird bei Rückgabe Ihres austauschfähigen Altteils zurückerstattet. Achtung: Altteile immer ausreichend frankiert an uns zurücksenden!
Safety tab for flywheel bolt (8 holes)
Safety tab for flywheel bolt (8 holes) Alfa Romeo 101 - Models 1300 - 1750cc 105 / 115
Safety tab washer crankshaft 1. - 4. main bearing
Safety washer for main bearings 1 - 4. Alfa Romeo 750 / 101 - Models 105 / 115 - Models Alfetta Giulietta Alfa 75 Alfa 90 Alfa 155 Alfa 164 8 pieces needed
Set crankshaft thrust washers 1300-2000cc 0.005
Set Thrust Washers (0.005) Alfa Romeo 1300 - 2000cc. 101 - Models 105 / 115 - Models Alfetta Giulietta Alfa 90 Alfa 75 Alfa 164 Alfa 155
Set crankshaft thrust washers 1300-2000cc 0.010
Set Thrust Washers (0.010) Alfa Romeo 1300 - 2000cc. 101 - Models 105 / 115 - Models Alfetta Giulietta Alfa 90 Alfa 75 Alfa 164 Alfa 155
Set crankshaft thrust washers 1300-2000cc std
Set Thrust Washers (Standard) Alfa Romeo 1300 - 2000cc. 101 - Models 105 / 115 - Models Alfetta Giulietta Alfa 90 Alfa 75 Alfa 164 Alfa 155
Our crankshaft category includes faithfully reproduced and high-precision machined units for a wide range of Alfa Romeo engines – from classic inline-fours to V6 models. Each unit is engineered for outstanding balance, strength, and surface finish.
Available as new, remanufactured original, or reinforced motorsport-grade versions, every crankshaft undergoes meticulous dimensional and quality checks. Matching bearing sets, main bearings, timing rings, pulleys, and accessories are also available. Perfect for both OEM restorations and performance builds.
